Name: Panasonic Lumix DC-S5IIX Body
Brand: Panasonic
SKU: 597
Availability: InStock

Offering fast, accurate phase hybrid autofocus, the LUMIX S5IIX full frame mirrorless camera is designed to deliver excellent performance in both photo and video. The 24.2-megapixel 35mm full-frame CMOS sensor complies with PDAF (Phase Detection Auto-Focus), with Active I.S. to support walking shots, and an imaging engine that’s been developed to achieve high resolution, natural description, and approximately 2x higher-speed signal procession for high bit-rate video recording. With the high dynamic range and broad colors of a 14+ stop V-Log/V-Gamut capture, and an advanced heat dispersion mechanism for unlimited video recording and livestreaming, the S5IIX is developed to meet the demands of ambitious creators with an assertive shooting style. With 5.8K Pro-Res, Pro-Res internal, RAW over HDMI, Wireless/Wired IP streaming.

24.2-Megapixel 35mm full-frame CMOS sensor

For high resolution, natural description, and approximately 2x higher-speed signal processing

ISO 100 – 51200 (expandable to 204800)

The S5IIX full frame mirrorless camera provides dual native ISO sensitivity, the technology that minimizes noise generation by choosing an optimal circuit to use according to the sensitivity before gain processing. It allows a maximum ISO 51200 (Extended: 204800) high-sensitivity recording

Burst shooting at 9 (AFS) / 7 (AFC) captures subjects in motion

Capable of higher speed burst shooting at 9 (AFS) / 7 (AFC) fps with a mechanical shutter and 30 fps (AFS/AFC) with an electronic shutter in JPEG/RAW. Pre-burst shooting mode has been added, which enables recording of images from the moment the shooter half presses the shutter button, allowing retroactive burst shooting up to the moment the shutter button is pressed down fully. *Please update the firmware to version 2.0.

Improved, 779-point Phase Detection Autofocus

779 points of Auto Focus. The first Phase Detection Autofocus system delivers speed and accuracy to help you capture your target subject even in the most challenging scenes were multiple subjects are involved, in backlit or low-light environments as well. *To use Animal Eye/Car/Motorcycle recognition and pre-burst shooting function, please update the firmware to version 2.0.

Unlimited video recording

Heat dispersion mechanism combines a small fan and high-efficiency heat sink to achieve unlimited video recording and livestreaming while keeping the camera size compact. 4:2:2 10-bit C4K/4K 60p/50p

Connectivity

Wi-Fi, Bluetooth, USB-SSD for easy photo sharing and transfer

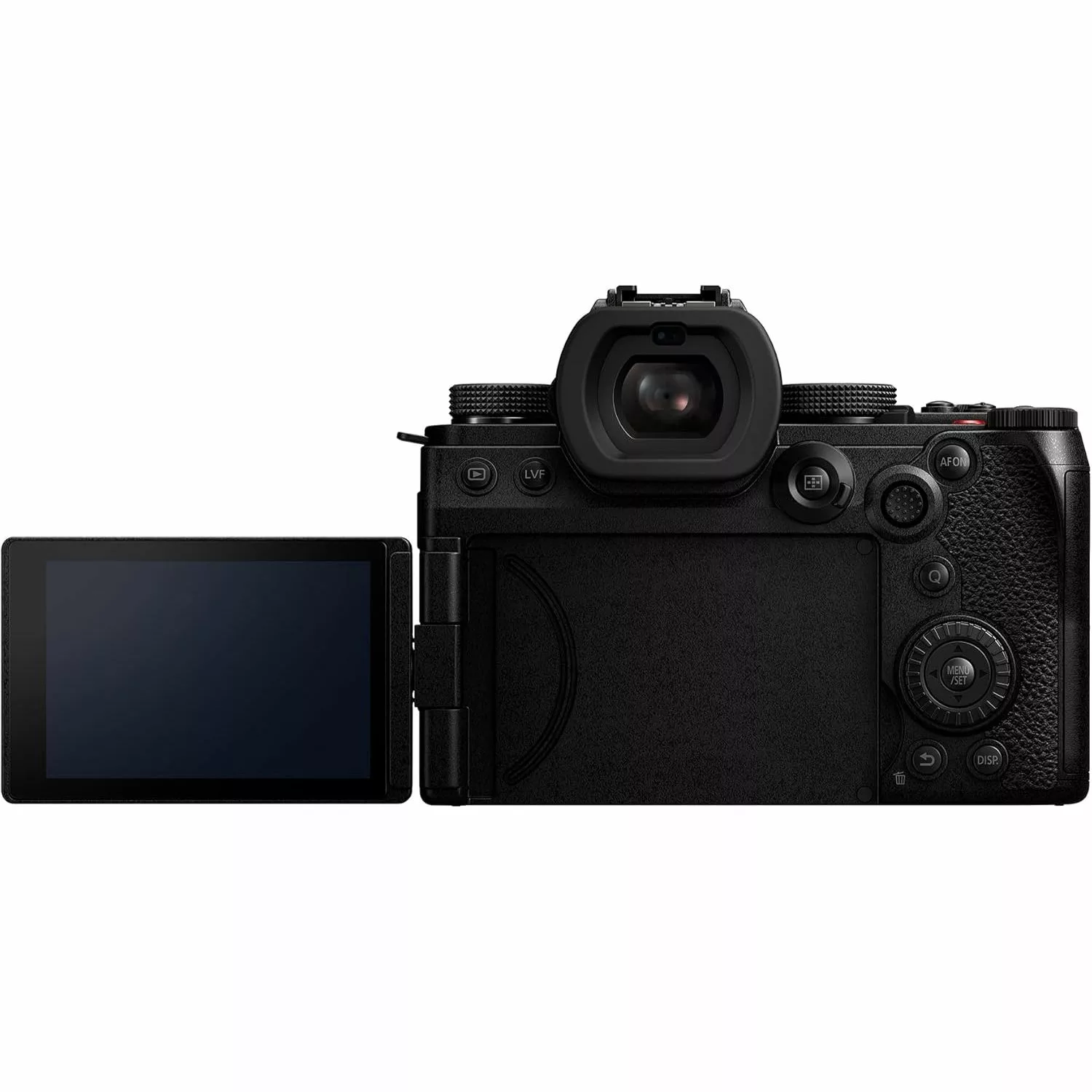

Free-angle touch-control monitor for use at any angle, even in bright sunlight

3.0-inch LCD free-angle touch-control monitor with 1,840K-dot high resolution

3,680K-dot OLED Live View Finder for easy image preview

3,680K-dot OLED LVF features a high magnification ratio of approx. 1.52x / 0.76x (35mm camera equivalent)

779 AF Points for super-sharp images

PDAF (Phase Detection Auto-Focus) 779 AF Points

Livestreaming and more

5.8K Pro-Res, Pro-Res internal, RAW over HDMI, Wireless/Wired IP streaming

96MP High Resolution, Real Time LUT

An industry first–Photo LUT application and recording on the camera itself)

External Flash is Available – DMW-FL580L/FL360L/FL200L

Features Auto / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync. / Red-eye Reduction / Forced Off. For iA only

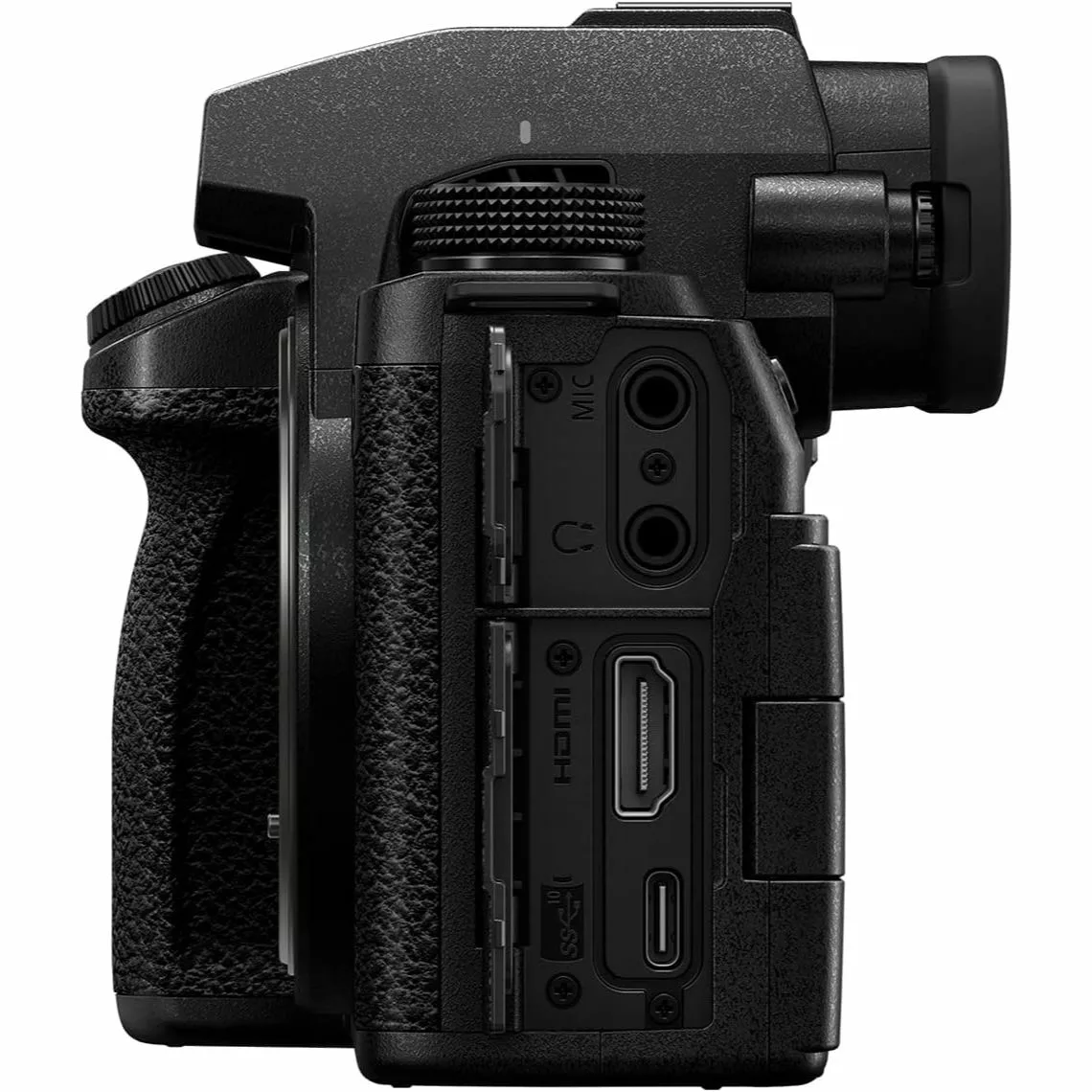

Interface

HDMI Type A, USB 3.2 Gen2 Type-C

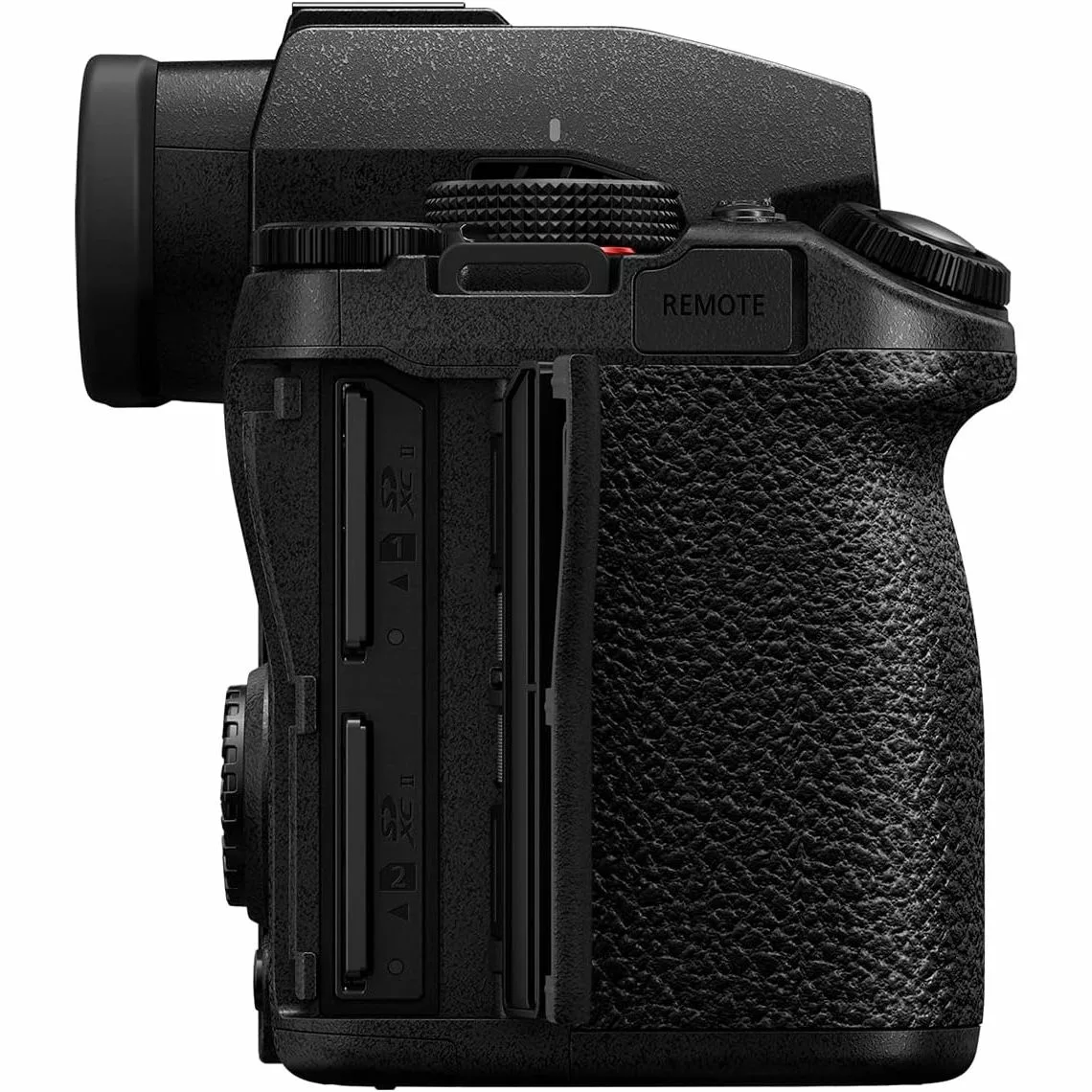

Double SD card slots

Accepts SD Memory Card, SDHC Memory Card* and SDXC Memory Card*. *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards

Compatibility with Adobe Camera to Cloud

Adobe Camera to Cloud enables recorded content to be directly uploaded to the Frame.io platform from the camera through Wi-Fi or USB tethering, for seamless sharing of captured photos (JPEG/RAW) and Proxy videos, enabling remote checking and joint editing using non-linear editing software. *Please update the firmware to version 3.0.

E.I.S. Performance

The E-Stabilization (Video) function has HIGH mode which corrects large shakes when shooting on the move. A perspective distortion correction is available to correct distortion that occurs during video recording with a wide-angle lens. *Please update the firmware to version 2.0.

Specifications

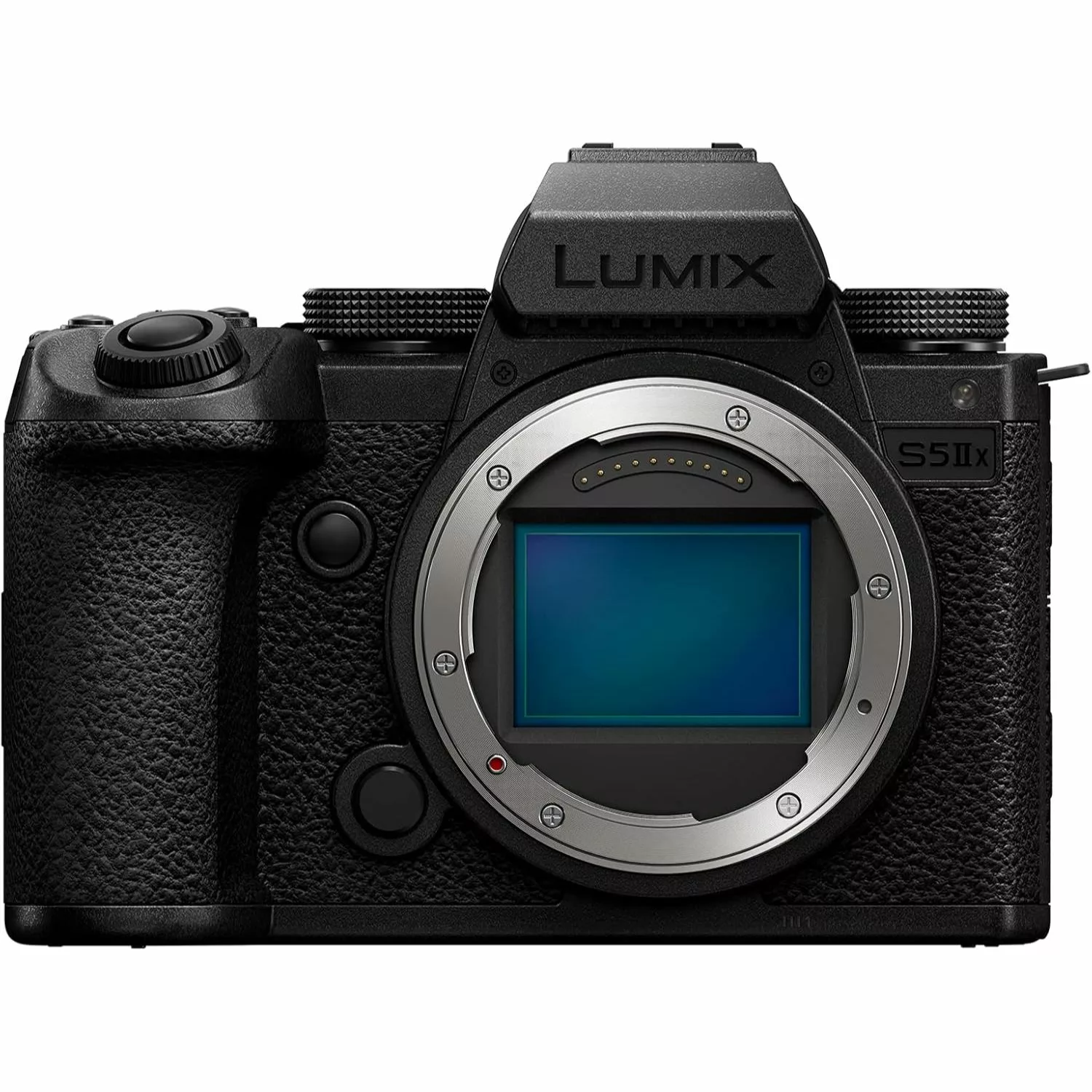

Imaging	Lens Mount: Leica L
	Sensor Resolution: Actual: 25.28 Megapixel, Effective: 24.2 Megapixel (6000 x 4000)
	Sensor Type: 35.6 x 23.8 mm (Full-Frame) CMOS
	Image Stabilization: Sensor-Shift, 5-Axis
	Capture Type: Stills & Video

Exposure Control	Shutter Type: Electronic Shutter, Mechanical Focal Plane Shutter
	Shutter Speed: Mechanical Shutter 1/8000 to 60 Seconds, Up to 30 Minutes in Bulb Mode Electronic Front Curtain Shutter 1/2000 to 60 Seconds, Up to 30 Minutes in Bulb Mode Electronic Shutter 1/8000 to 60 Seconds, Up to 60 Seconds in Bulb Mode
	Bulb/Time Mode: Bulb Mode, Time Mode
	ISO Sensitivity: Photo/Video 100 to 51,200 (Extended: 50 to 204,800)
	Metering Method: Center-Weighted Average, Highlight Weighted, Multiple, Spot
	Exposure Modes: Aperture Priority, Auto, Manual, Program, Shutter Priority
	Exposure Compensation: -5 to +5 EV (1/3 EV Steps)
	Metering Range: 0 to 18 EV
	White Balance: 2500 to 10,000K Presets: AWB, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4
	Continuous Shooting: Mechanical Shutter Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) Electronic Shutter Up to 30 fps for up to 200 Frames (Raw) / 200 Frames (JPEG) Up to 9 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) Up to 5 fps for up to 200 Frames (Raw) / 300 Frames (JPEG) Up to 2 fps for up to 200 Frames (Raw) / 300 Frames (JPEG)
	Interval Recording: Yes
	Self-Timer: 2/10-Second Delay

Still Image Capture	Image Sizes: 3:2 96 MP (12,000 x 8000) Via In-Camera Pixel-Shift 96 MP (8496 x 5664) Via In-Camera Pixel-Shift 24.2 MP (6000 x 4000) 24.2 MP (4272 x 2848) 24.2 MP (3024 x 2016)4:3 96 MP (10,656 x 8000) Via In-Camera Pixel-Shift 96 MP (7552 x 5664) Via In-Camera Pixel-Shift 24.2 MP (5328 x 4000) 24.2 MP (3792 x 2848) 24.2 MP (2688 x 2016)16:9 96 MP (12,000 x 6736) Via In-Camera Pixel-Shift 96 MP (8496 x 4784) Via In-Camera Pixel-Shift 24.2 MP (6000 x 3368) 24.2 MP (4272 x 2400) 24.2 MP (3024 x 1704)1:1 96 MP (8000 x 8000) Via In-Camera Pixel-Shift 96 MP (5664 x 5664) Via In-Camera Pixel-Shift 24.2 MP (4000 x 4000) 24.2 MP (2848 x 2848) 24.2 MP (2016 x 2016)65:24 24.2 MP (6000 x 2208)2:1 24.2 MP (6000 x 3000)
	Aspect Ratio: 1:1, 2:1, 3:2, 4:3, 16:9, 65:24
	Image File Format: JPEG, Raw
	Bit Depth: 14-Bit

Video Capture	Internal Recording Modes: H.264/H.265/MOV/MP4/ProRes 4:2:2/4:2:0 8/10-Bit 5952 x 3968 at 23.98/24.00/25/29.97 fps [200 Mb/s] 5952 x 3136 at 23.98/24.00/25/29.97 fps [200 Mb/s] 5888 x 3312 at 23.98/24.00/25/29.97 fps [200 Mb/s] 4096 x 2160 at 23.98/24.00/25/29.97 fps [150 to 400 Mb/s] 3840 x 2160 at 23.98/24.00/25/29.97 fps [72 to 400 Mb/s] 1920 x 1080 at 23.98/24.00/25/29.97/47.95/48.00/50/59.94/100/119.88 fps [20 to 454 Mb/s]
	External Recording Modes: 12-Bit via HDMI 5888 x 3312 at 23.98/25/29.97 fps 10-Bit via USB 5776 x 3056 at 23.98/24.00/25/29.97 fps 4096 x 2160 at 23.98/24.00/25/29.97 fps 1920 x 1080 at 24.00/25/50 fps
	Sensor Crop Modes: Super35 / APS-C 4096 x 2160 3840 x 2160 3328 x 2496 1920 x 1080
	Fast-/Slow-Motion Support: Yes
	Gamma Curve: Panasonic V-Gamut, V-Log
	Recording Limit: None
	Broadcast Output: NTSC/PAL
	IP Streaming: RTP, RTSP 3840 x 2160 to 1280 x 720 at 25p, 29.97p, 50p, 59.94p (4.0 to 25.00 Mb/s)
	Built-In Microphone Type: Stereo
	Audio Recording: MOV: 2-Channel 24-Bit 48 kHz LPCM Audio MP4: 2-Channel 16-Bit 48 kHz AAC Audio

Interface	Media/Memory Card Slot: Dual Slot: SD/SDHC/SDXC (UHS-II)
	Video I/O: 1 x HDMI Output
	Audio I/O: 1 x 1/8″ / 3.5 mm TRRS Headphone/Mic Headphone Output 1 x 1/8″ / 3.5 mm TRRS Headphone/Mic Microphone Input
	Power I/O: 1 x USB-C Input/Output
	Other I/O: 1 x USB-C Data Input/Output (Shared with Power Input)
	Wireless: 2.4 / 5 GHz Wi-Fi (802.11b/g), Wi-Fi 5 (802.11ac), Bluetooth 5.0
	Mobile App Compatible: Yes: Android & iOS App Name: Lumix Sync Functionality: Access Stored Files, Firmware Update, Remote Control *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
	Global Positioning (GPS, GLONASS, etc.): None

Monitor	Size: 3″
	Resolution: 1,840,000 Dot
	Display Type: Free-Angle Tilting Touchscreen LCD

Viewfinder	Type: Built-In Electronic (OLED)
	Resolution: 3,680,000 Dot
	Eye Point: 21 mm
	Coverage: 100%
	Magnification: Approx. 0.78x
	Diopter Adjustment: -4 to +2

Focus	Focus Type: Auto and Manual Focus
	Focus Mode: Continuous-Servo AF, Manual Focus, Single-Servo AF
	Autofocus Points: Photo, Video Contrast Detection, Phase Detection: 779
	Autofocus Sensitivity: -6 to +18 EV

Flash	Built-In Flash: No
	Flash Modes: Auto, Auto/Red-Eye Reduction, Forced On, Forced On/Red-Eye Reduction, Slow Sync, Slow Sync/Red-Eye Reduction
	Maximum Sync Speed: 1/250 Second
	Flash Compensation: -3 to +3 EV (1/3 EV Steps)
	Dedicated Flash System: TTL
	External Flash Connection: Hot Shoe

Environmental	Operating Temperature: 32 to 104°F / 0 to 40°C
	Operating Humidity: 10 to 80%

General	Battery Type: 1 x Rechargeable Lithium-Ion, 7.2 VDC, 2200 mAh (Approx. 370 Shots)
	Tripod Mounting Thread: 1 x 1/4″-20 Female (Bottom)
	Accessory Mount: 1 x Hot Shoe Mount on Camera Body
	Material of Construction: Magnesium Alloy
	Dimensions (W x H x D): 5.29 x 4.03 x 3.55″ / 13.44 x 10.24 x 9.02 cm (Without Protrusions)
	Weight: 1.45 lb / 658 g (Body Only) 1.64 lb / 744 g (With Recording Media)
